Sale!
CAS DSB-B Double Ended Beam Load Cell
₹25,799
- Compressed type.
- Robust design and easy installation.
- Strong against shock or side force.
- Designed according to IP67.
Optional Accessories
-
Accessory Set
Description
Additional information
| Capacity | 10 TF, 25 TF, 30 TF |
|---|
Specification
Capacity(R.L.) tf 10, 25, 30
Rated Output:- mV / V 2.0 ± 0.004
Zero Balance:- mV / V 0.0 ± 0.02
Non-Linearity:- % R.O. ≤ 0.03
Hysteresis:- % R.O. ≤ 0.03
Combined Error:- % R.O. ≤ 0.03
Repeatability:- % R.O. ≤ 0.02
Creep for 30min.:- % R.O. ≤ 0.03
Return for 30min.:- % R.O. ≤ 0.03
Resolution:- – ≤ 1/3000
Division:- mV / V 0.00067
Temperature -Zero Value:- %/10℃ ≤ 0.03
Effect on -Output Value:- %/10℃ ≤ 0.015
Excitation -Recommended:- V 10
-Maximum:-V15
Resistance -Input:- Ω 800 ± 40
-Output:-Ω700 ± 7
-Insulation:-MΩ> 2000
Compensated Temperature Range:- ℃ -10 to +40
Operating Temperature Range:- ℃ -30 to +80
Material & Plate:- – Steel / Coating
Cable Specification:- – Ø8 x 4P x 15m (PVC)
Safety Overload:- % R.L. 150% R.L.
Feature

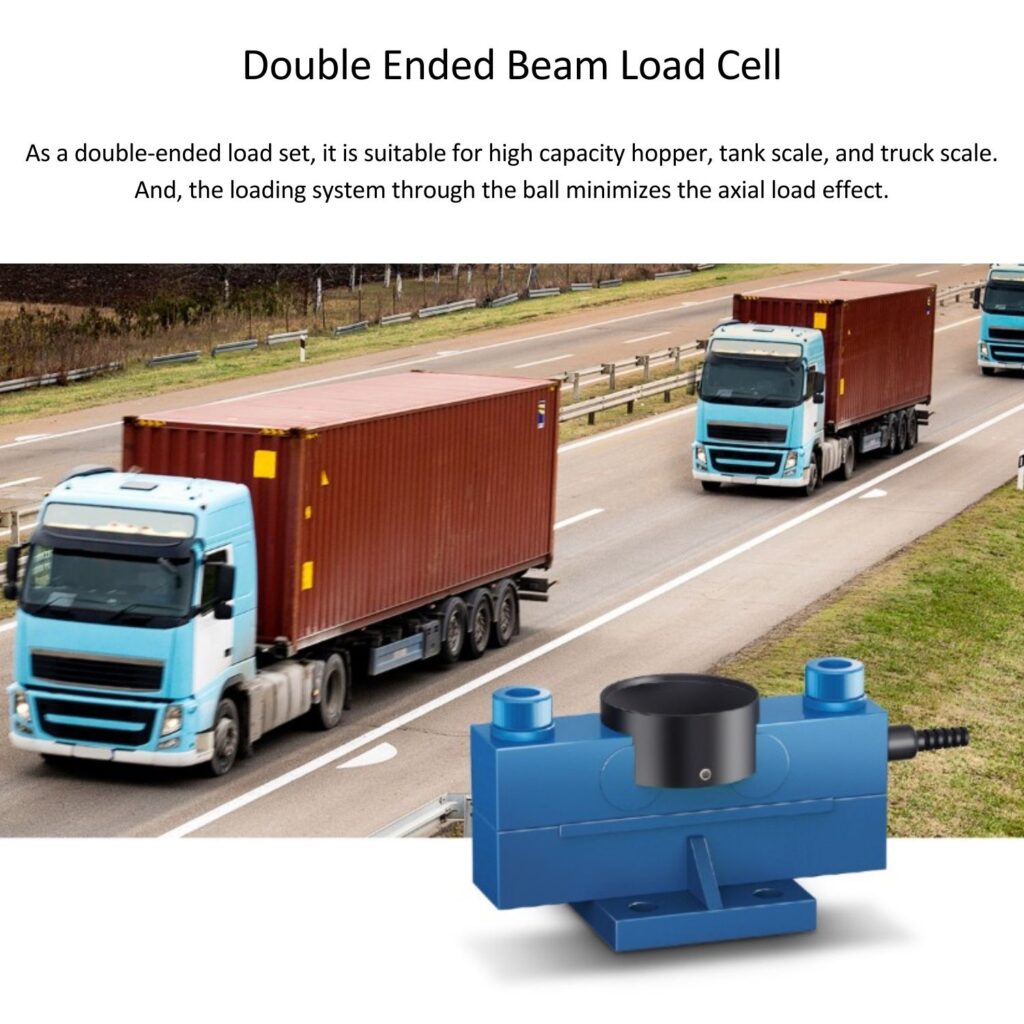

DSB-B is a double-ended beam type load cell designed for high-capacity hopper, tank, and truck scale applications. Its ball-type force transmission structure effectively minimizes side load interference, ensuring stable, accurate, and reliable weighing performance even under heavy loads.
