Sale!
CAS BSA Single Ended Beam Load Cell
₹5,499 – ₹6,799
- Pressure type
- Designed according to IP66
Optional Accessories
- TW Bolt Type Accessory (250kgf~2tf / 3~5tf)
- TWE Ball Type Accessory (250kgf~2tf / 3~5tf)
Description
Additional information
| Capacity | BSA-1000kg, BSA-2000kg, BSA-250kg, BSA-3000kg, BSA-5000kg, BSA-500kg |
|---|
Specification
Capacity(R.L.) kgf 250, 500, 1000, 2000, 3000, 5000
Rated Output:- mV / V 3.0 ± 0.0075
Zero Balance:- mV / V 0.0 ± 0.03
Non-Linearity:- % R.O. ≤ 0.03
Hysteresis:- % R.O. ≤ 0.03
Combined Error:- % R.O. ≤ 0.03
Repeatability:- % R.O. ≤ 0.01
Creep for 30min.:- % R.O. ≤ 0.03
Return for 30min.:- % R.O. ≤ 0.03
Resolution:- – ≤ 1/3000
Division:- mV / V 0.001
Temperature -Zero Value:- %/10℃ ≤ 0.028
Effect on -Output Value:- %/10℃ ≤ 0.015
Excitation -Recommended:- V 10
-Maximum:-V15
Resistance -Input:- Ω 350 ± 3.5
-Output:-Ω350 ± 3.5
-Insulation:-MΩ> 2000
Compensated Temperature Range:- ℃ -10 to +40
Operating Temperature Range:- ℃ -30 to +80
Material & Plate:- – Steel
Cable Specification:- – Ø5.4 x 4P x 3m (Urethane)
Safety Overload:- % R.L. 150

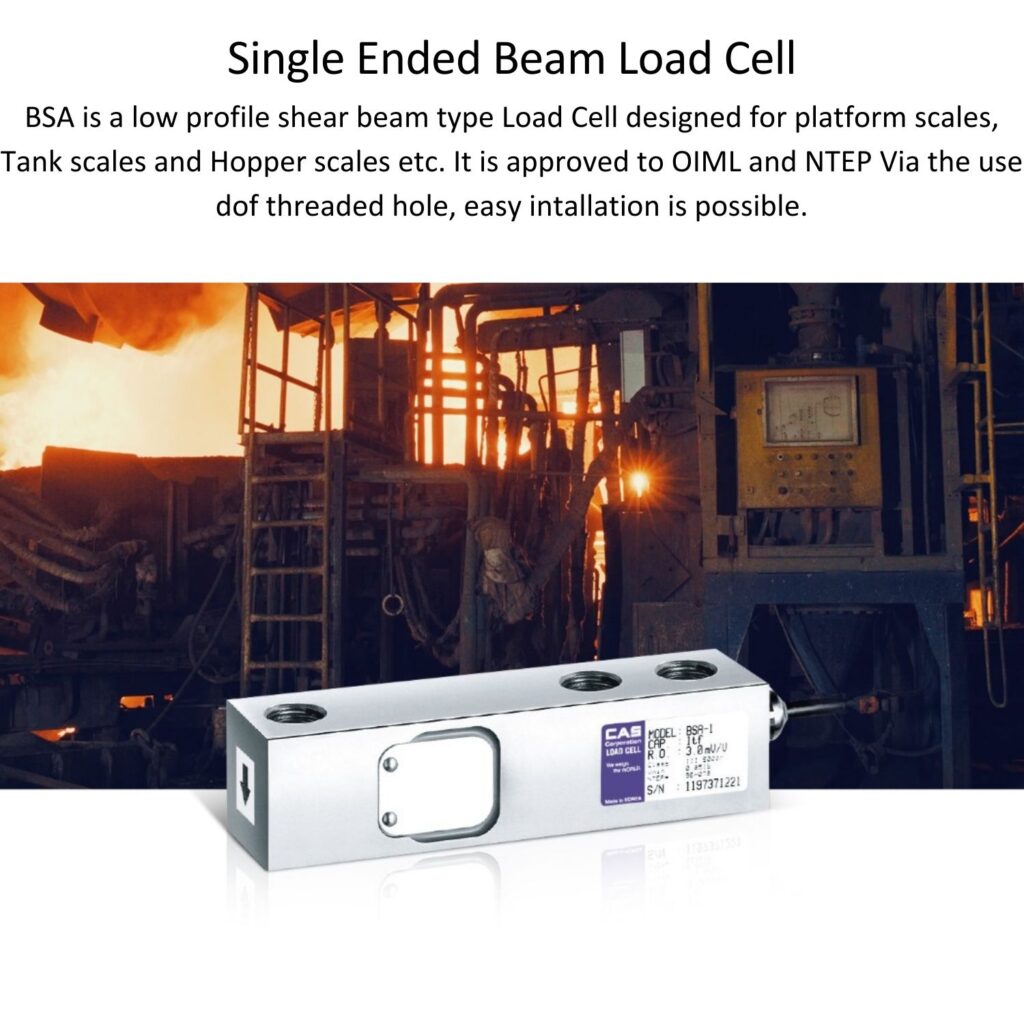

Feature
BSA is a single ended beam type load cell made of high-strength steel. Its low-profile, pressure-type structure makes it compatible with platform, hopper, tank scales, and a wide variety of other weighing systems.
